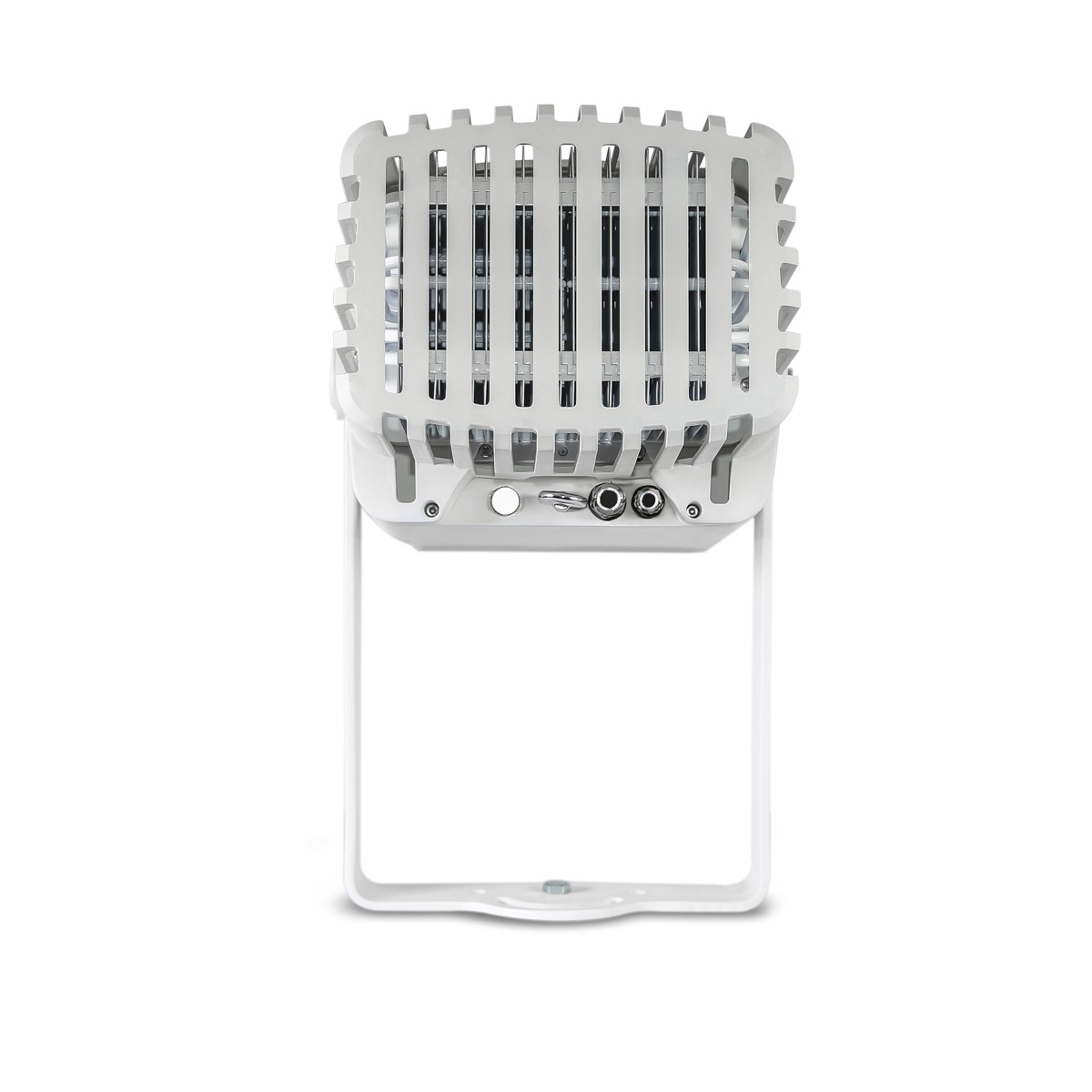

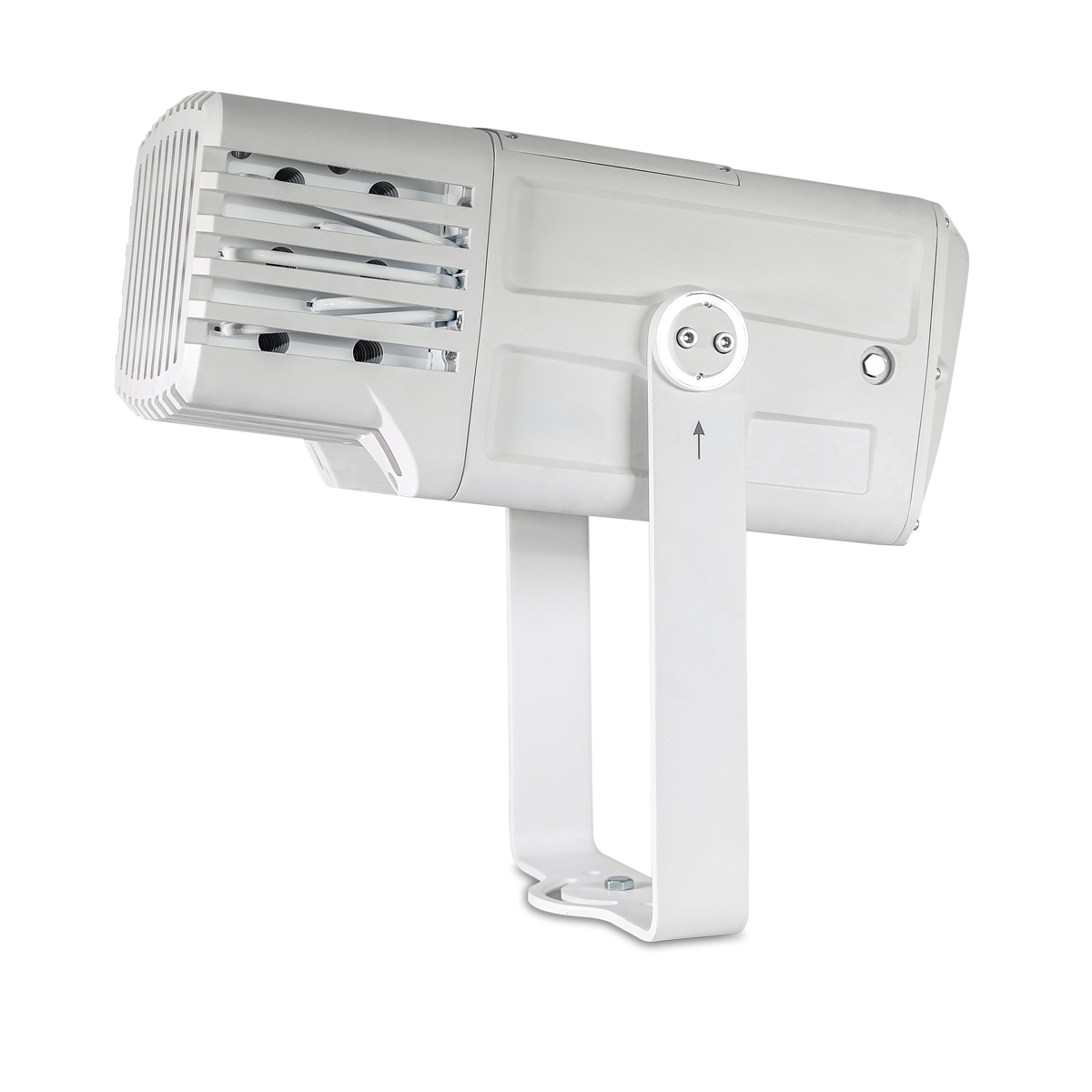

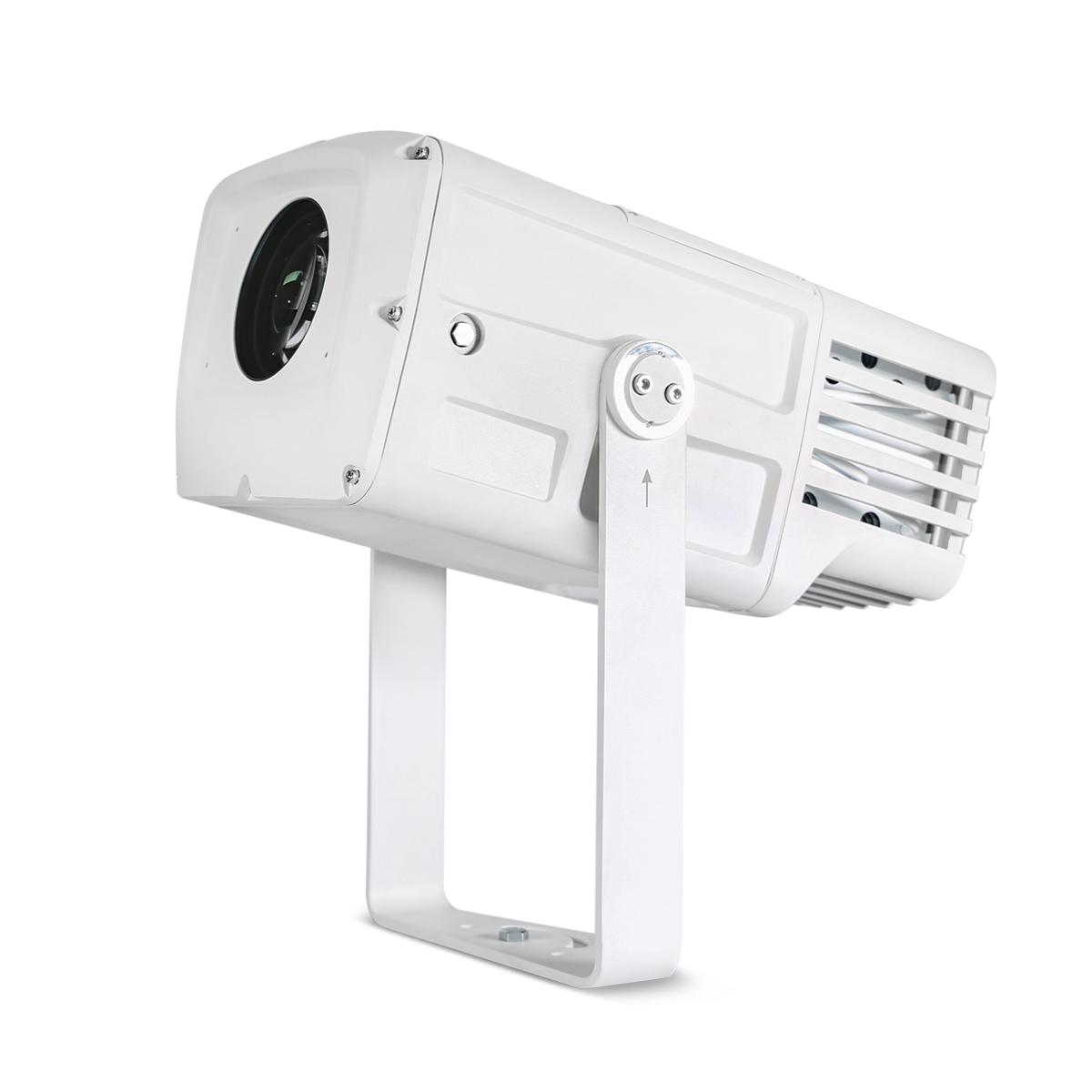

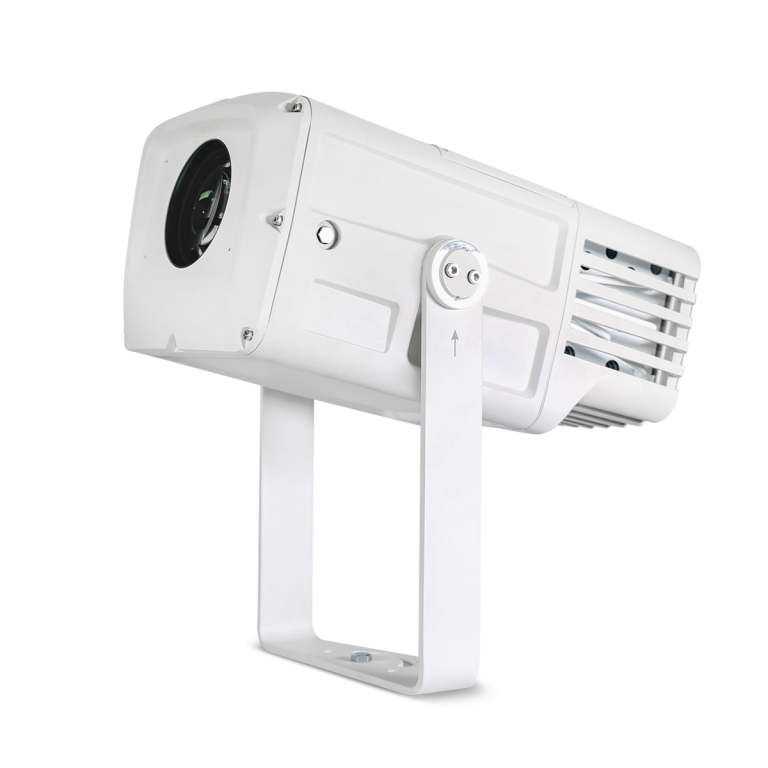

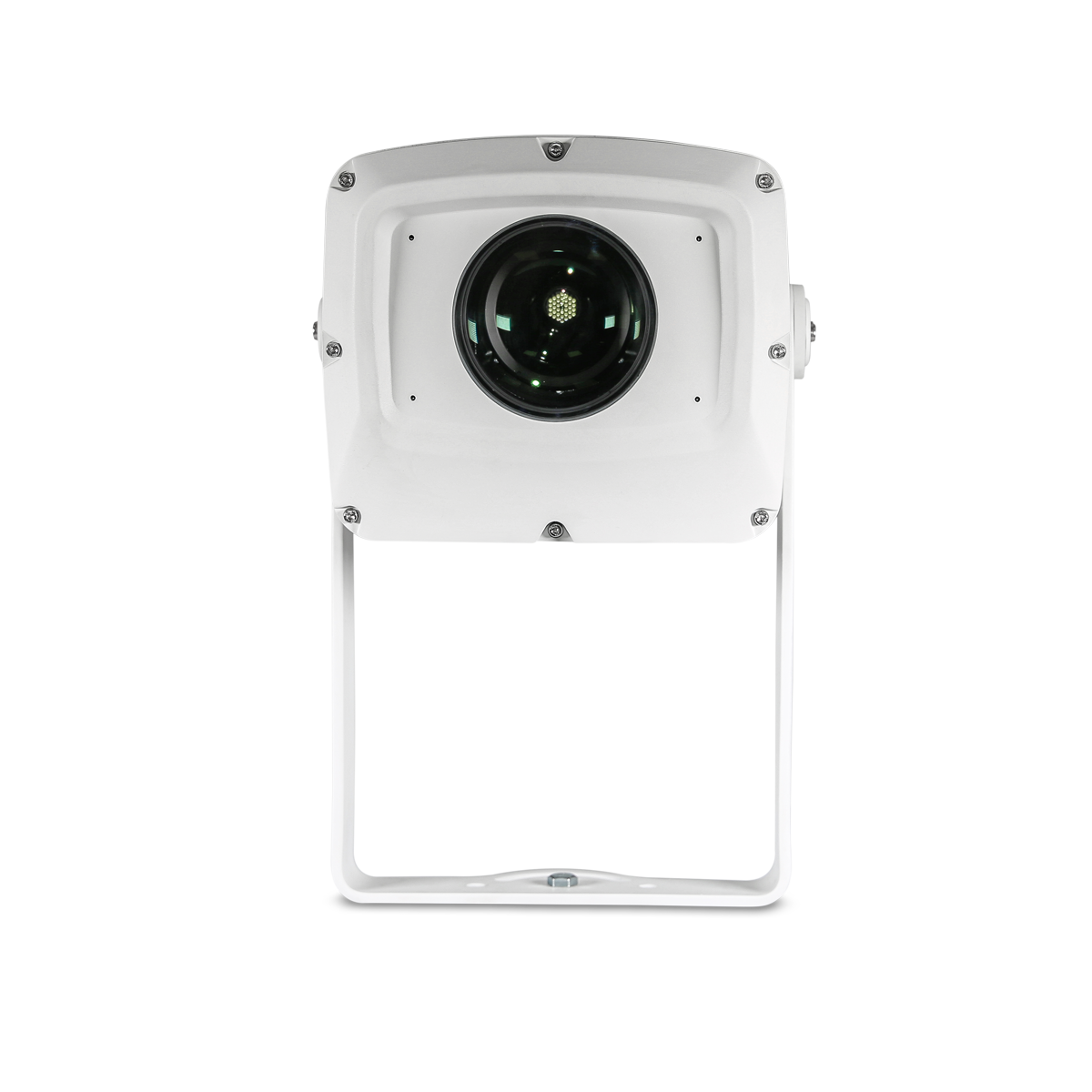

PROJEKTA-PR0 400

PROJEKTA-PRO 400 is a 380 watts Cool White image projector with a CMY build-in macros allowing it to achieve a wide variety of dynamic patterns and effects. It has a strong build and high IP rating which makes it perfect for indoor and outdoor architectural applications.

Product Description

PROJEKTA-PRO 400 is a 380 watts Cool White image projector with a CMY build-in macros allowing it to achieve a wide variety of dynamic patterns and effects. It has a strong build and high IP rating which makes it perfect for indoor and outdoor architectural applications.

Source

  • Light source: 380 watt Cool White
  • LED life expectancy: 50,000 Hrs

Optical System

  • Optics: 8° – 40° Electronic Zoom
  • Light output: 450,000Lux @1m @15°

Dynamic Effects

  • Rotating Gobo: 7 Gobos Open, Gobo flow effect, Gobo shake, bi-directional Rotation
  • Animation wheel: bi-directional rotation, adjustable speed
  • Colors: one color wheel (7 dichroic filters White, Rainbow  flow effect)
  • CMY system, built in Macro
  • Prism: One 3 prism bi-directional rotation, adjustable speed
  • Frost: 1 frost filter
  • Focus: Motorized linear focus
  • Color: Cool White

Control & Programming

  • Display: On Board Control
  • 0-25 Hz Strobe
  • Control Protocols: DMX, RDM
  • Dimmer: 0-100% 16 Bit
  • Control Channel: Standard/25Chs, Basic/20Chs

Electrical

  • Input Voltage: AC100-240V,
  • Max Power: 400 W
  • Power Factor: >0.6

Connections

  • Power connections: 3m cable (input only)
  • Data connection: 3m cable (input output)

PHYSICAL

  • Dimensions: 650 x 343 x 250 mm
  • Net Weight: 23 kg
  • Color: Off-White (Gray, Black optional)
  • Housing: Die-cast magnesium alloy
  • IP Rating: IP66
  • Operation temperature: – 20°C~45°C

Download

Data Sheet
