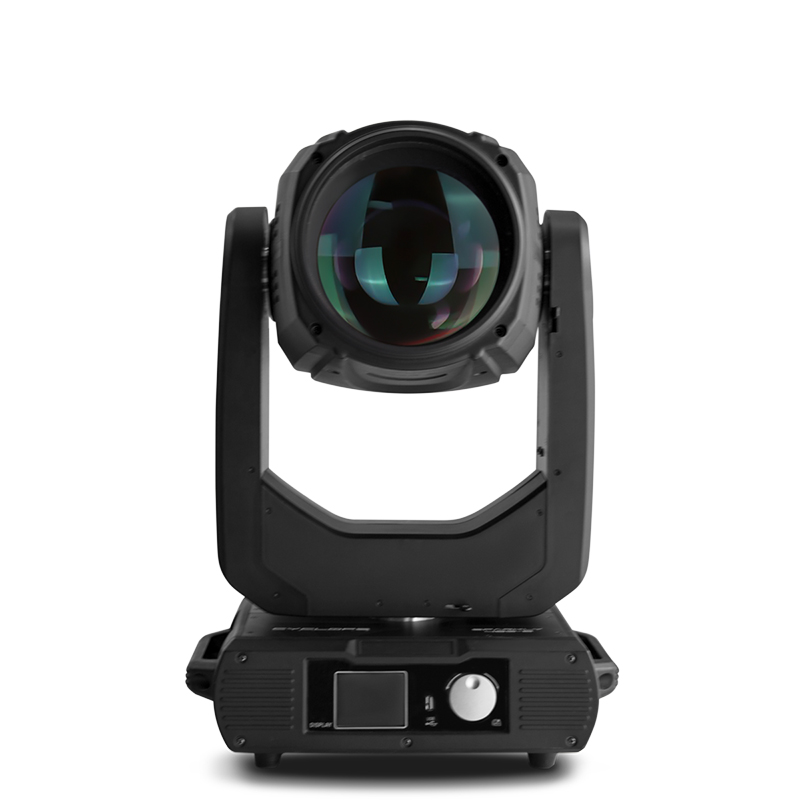

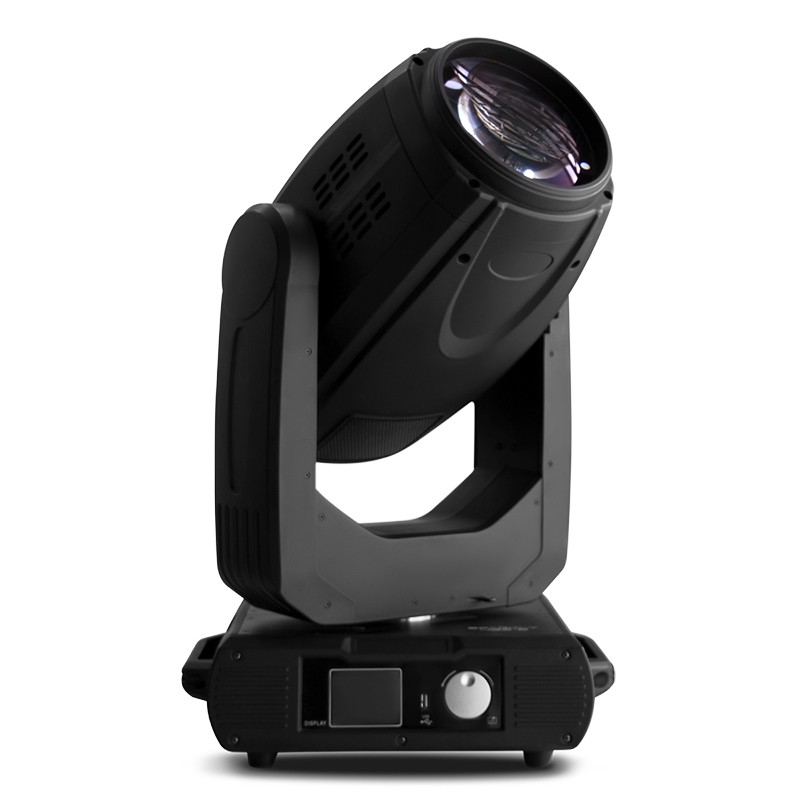

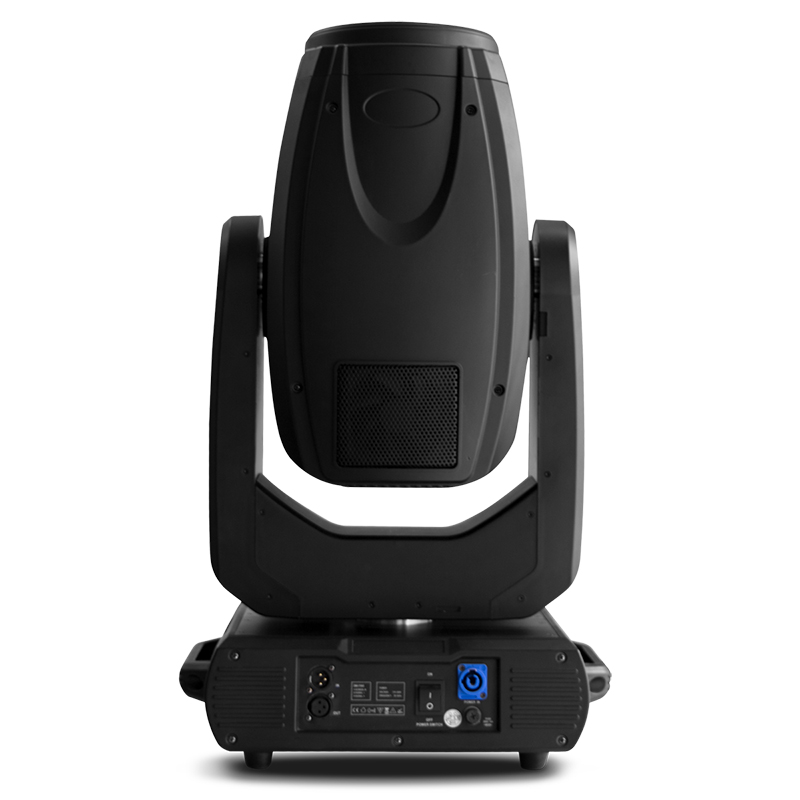

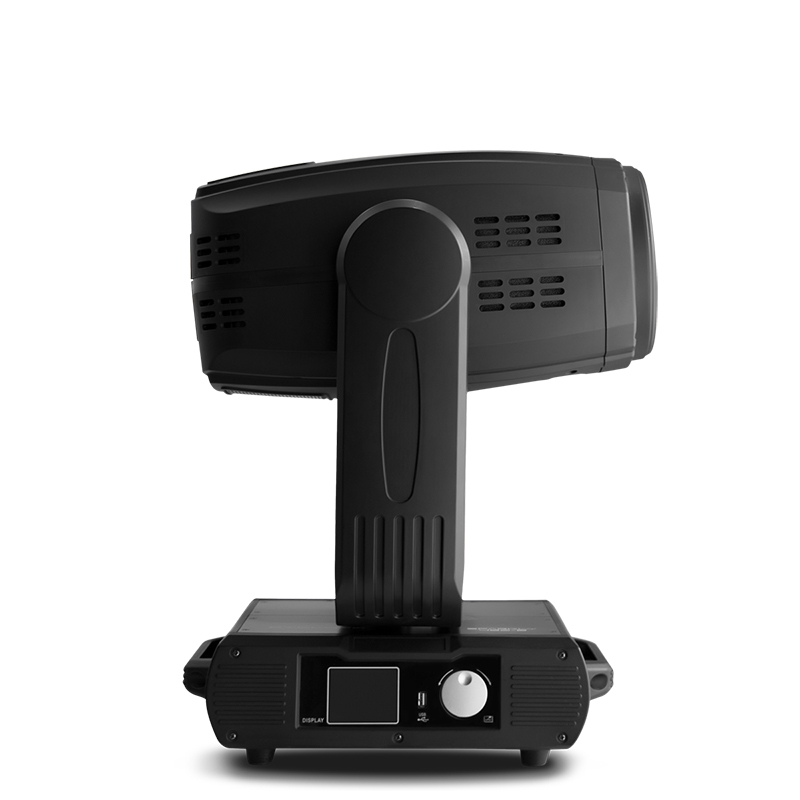

SPARKLY 480B - High Power Beam Moving Head

SPARKLY 480B is an extremely powerful and sharp moving head beam. It features a 440 watts lamp, 5 combinations of prisms and 17 static gobos, offering the maximum level of creativity and aerial effects for all stage events.

SKU: Sparkly480B Categories: , , Brand: Series:

Product Description

SPARKLY 480B is an extremely powerful and sharp moving head beam. It features a 440 watts lamp, 5 combinations of prisms and 17 static gobos, offering the maximum level of creativity and aerial effects for all stage events. SOURCE
  • Light source: Osram Sirius 440 watts
  • Lamp life expectancy: 1,500 Hrs.
OPTICAL SYSTEM
  • Beam angle: 2.8°
  • Light output: 220,000 Lux @ 20m @ 2.8°
  • Electronic focus
DYNAMIC EFFECTS
  • Dimmer: Linear adjustment
  • Color wheel: 12 colors + open
  • Electronic variable strobe
  • Static gobo: 17 gobos + open
  • Gobo shake function
  • Prism: 5 combinations of prisms
  • Frost
CONTROL & PROGRAMMING
  • Control protocols: DMX
  • Display: 2.8’ touchscreen display, reversible 180°
  • Control channels: 16 CHs
MOVEMENT
  • Pan: 540°
  • Tilt: 270°
  • Resolution: 16 bit
ELECTRICAL
  • Input voltage: 100-240V/50-60Hz
  • Power consumption: 600 watts
CONNECTIONS
  • DMX connections: 3 pin and 5 pin XLR In/Out male and female
  • Power connections: Powercon In
PHYSICAL
  • Dimensions: 440 x 310 x 680mm
  • Net weight: 21.9 Kg
  • Color: Black
  • IP rating: 20

Download

Data Sheet
