SPO 516 - 5 Pin Outdoor Weatherproof Wireless DMX Splitter

SPO 516 5 Pin Outdoor Weatherproof Wireless DMX Splitter
SPO 516 5 Pin Outdoor Weatherproof Wireless DMX Splitter
... ...

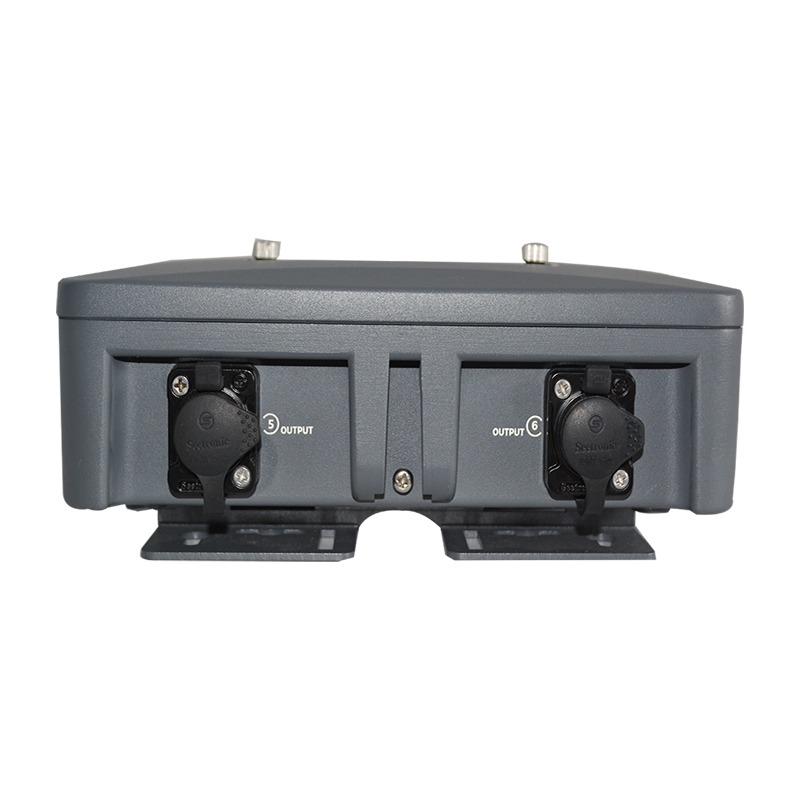

SPO 516 is a die-casted Aluminum outdoor DMX Splitter. It splits, boosts and distributes the DMX signal through 6 optically isolated outputs, preventing any signal distortions or disturbance. Each port is equipped with a waterproof cap. It is designed to be installed outdoor for a convenient data distribution structure for fixed installations and events.

In Stock

SKU: SPO516 Categories: , Brand:

Product Description

FEATURES

  • Split and boost the DMX signal
  • Power and data optically isolated DMX ports
  • High voltage protection
  • High brightness Power and DMX Status LED indicators
  • Weatherproof and UV resistant
  • Waterproof cover on each port

CONTROL & PROGRAMMING

  • DMX Pass-Thru
  • Termination on/off switch
  • Power and Data LED indicators

CONNECTIONS

  • Data inputs: 1 x 5 pin XLR
  • Data thru: 1 x 5 pin XLR
  • Data outputs: 6 x 5 pin XLR
  • Power input: IP Power Connector

ELECTRICAL

  • Input Voltage: AC 88-256V 50/60 Hz

PHYSICAL

  • Dimensions: 234 x 166 x 84 mm
  • Net Weight: 2.2 Kg
  • Color: Grey

Additional information

Weight 2.2 kg
Dimensions 23.4 × 16.6 × 8.4 cm

Download

Data Sheet
